  • موسع HDMI من مووسيل 120 متر 4K 30 هرتز

    موسع HDMI من مووسيل 120 متر 4K 30 هرتز

    رمز المنتج:MOE120

    في الأوراق المالية

    السعر العادي 585.00 image
    السعر العادي سعر البيع 585.00 image
    أُوكَازيُون نفذ
    يتم احتساب الشحن عند الخروج.

    سمات

    ·  Extends HDMI, USB, and IR up to 120 Meters

    ·  Supports 4K@30Hz Ultra-Clear Resolution

    ·  One-to-Many Transmission (Up to 253 Receivers)

    ·  Remote KVM Control via Keyboard and Mouse

    ·  Aluminum Alloy Housing for Heat Dissipation

    ·  Plug & Play with Automatic Signal Detection

    ·  Compatible with Windows, macOS & ChromeOS



    View full details

    وصف

    The Mowsil HDMI Extender 120M (MOE120) allows seamless transmission of HDMI, USB, and IR signals up to 120 meters over a single CAT6/6a Ethernet cable. Designed with professional-grade aluminum alloy housing, it supports resolutions up to 4K@30Hz for crystal-clear visuals with minimal latency.

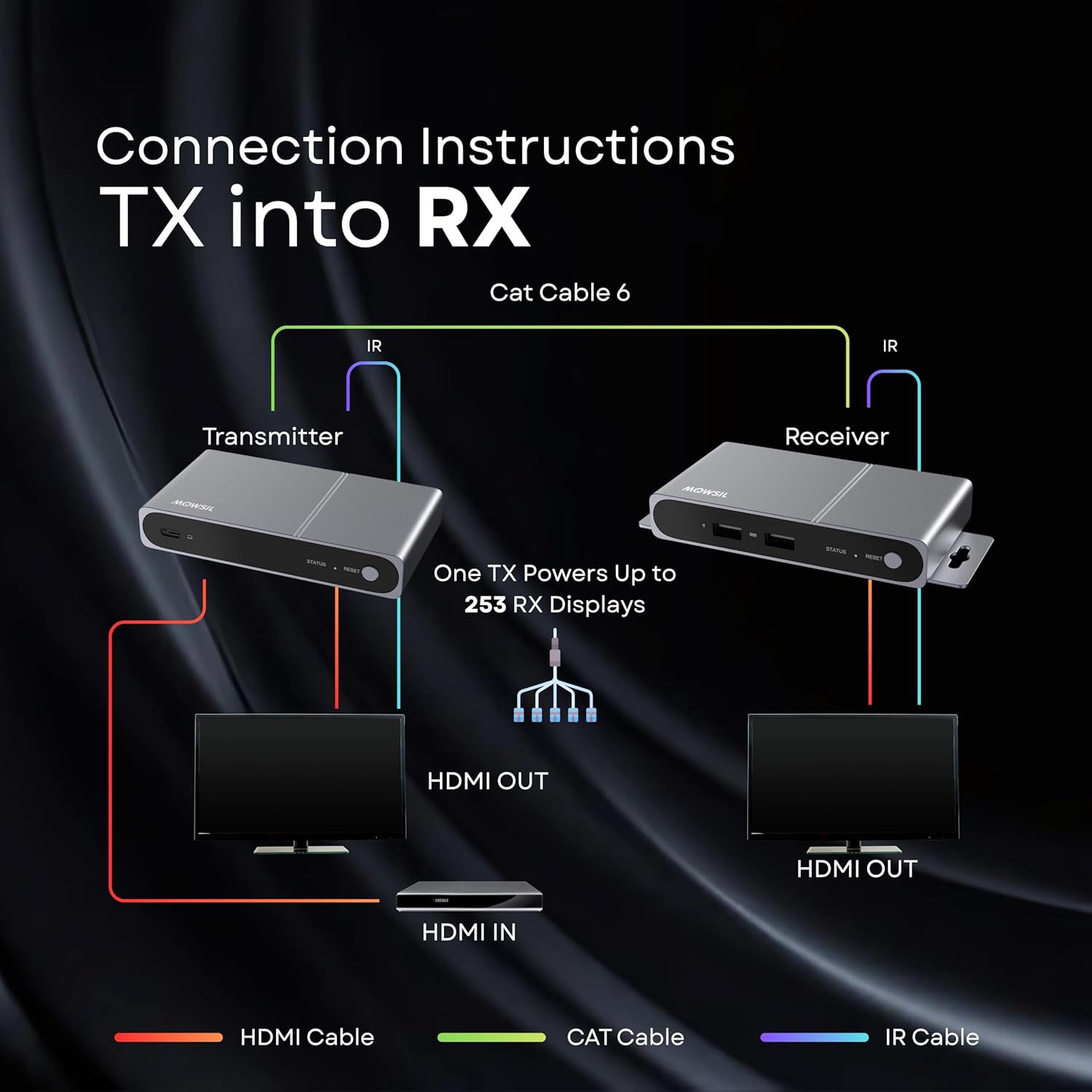

    This extender is ideal for conference rooms, classrooms, digital signage, and remote workstation setups. The receiver (RX) supports reverse USB control, enabling users to operate a remote PC directly with a keyboard and mouse. It also supports one-to-many connections—allowing up to 253 receivers (RX) to connect to one transmitter (TX) via a network switch, ensuring scalability for advanced AV applications.

    مواصفة

    الوزن:
    العرض × الارتفاع × العمق:

    • Model : MOE120
    • Transmission Distance : Up to 120 meters (CAT6 / CAT6a Cable)
    • Supported Resolution : 4K @ 30 Hz
    • HDMI Version : HDMI 1.4

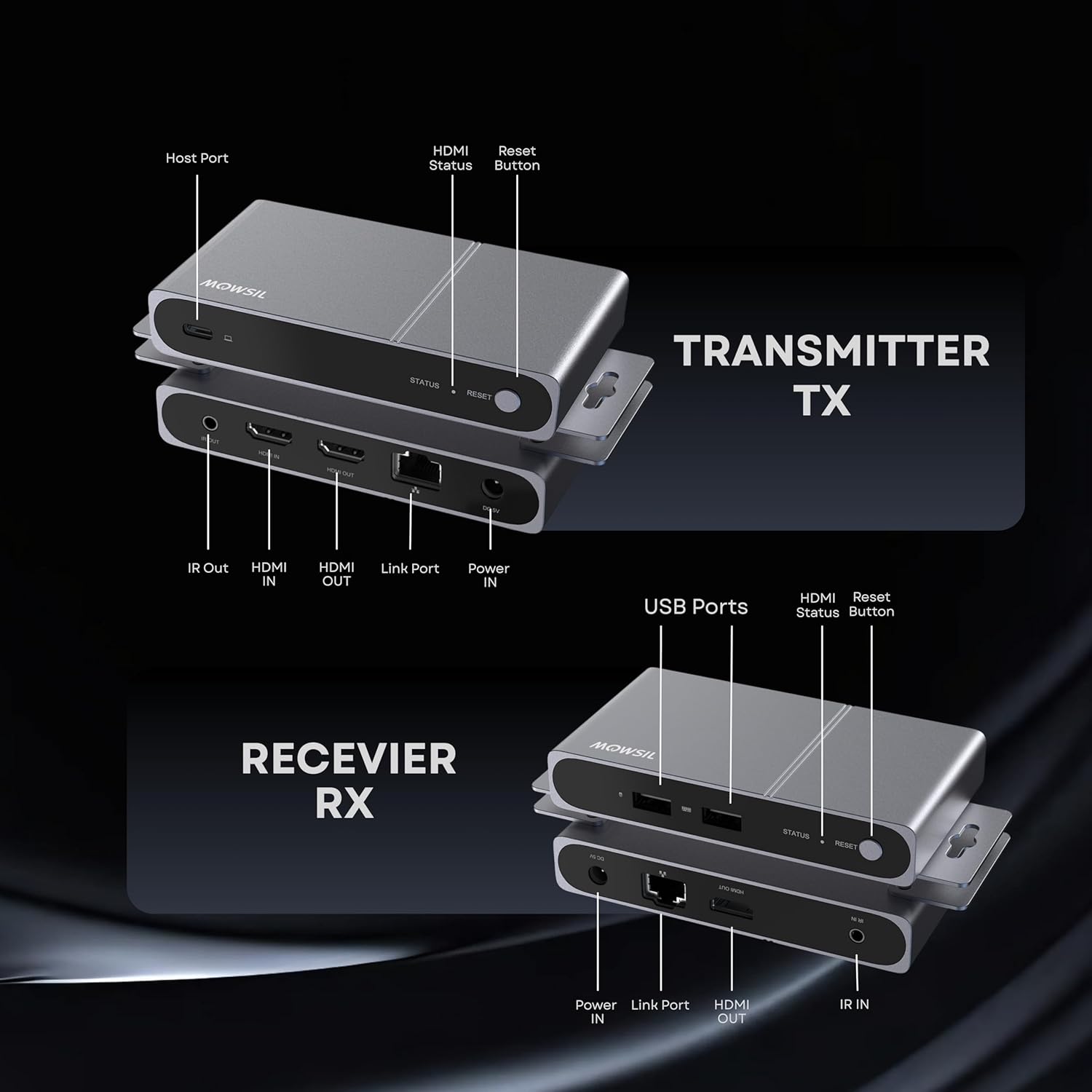

    • Audio / Video Interface (TX) : 1 × HDMI IN, 1 × HDMI OUT (Loop Out)
    • Audio / Video Interface (RX) : 1 × HDMI OUT
    • USB Interface (TX) : 1 × USB-C Host Port
    • USB Interface (RX) : 2 × USB-A 1.1 Ports (Keyboard & Mouse)
    • IR Interface : 1 × IR OUT (TX), 1 × IR IN (RX) (20 ~ 60 KHz)
    • Link Port : 1 × RJ45 (CAT6 or higher required)
    • Power Supply : DC 5 V / 2 A (Each Unit)
    • Product Dimensions : L119 × W64 × H20.5 mm
    • Operating Temperature : 0 °C – 40 °C
    • Storage Temperature : –20 °C – 45 °C
    • Humidity (Working/Storage) : 20–85 % / 10–90 % (No Condensation)
    • Enclosure Material : Aluminum Alloy (Deep Gray)
    • Supported OS : Windows, macOS, ChromeOS
    • Reset Button : Long Press 3 Seconds to Restart System

    معلومات إضافية

    • SKU : MOE120
    • Package Contents : Transmitter, Receiver, 2 × 5 V/2 A DC Adapters, USB-A to USB-C Cable, IR Receiver Cable, IR Transmitter Cable, 2 × Replaceable Plugs (US/UK/EU/AU), Mounting Ears & Screws, User Manual
    • Mounting Option : Rack / Wall Mount Ears Included
    • Product Use : Office, Education, Digital Signage, Remote Control Applications
    • Box Dimension : As per SKU Packaging
    • Warranty : 2 Years
    • Country of Origin : China
    • Brand Registration : United Kingdom
