    • Mowsil HDMI KVM Extender over Cat6 Ethernet, 120M Long-Distance HDMI Transmission, USB-A & USB-C Keyboard & Mouse Sharing, IR Remote Control, One-to-Many Up to 253 Receivers

    Mowsil HDMI KVM Extender over Cat6 Ethernet, 120M Long-Distance HDMI Transmission, USB-A & USB-C Keyboard & Mouse Sharing, IR Remote Control, One-to-Many Up to 253 Receivers

    MOE120

    In stock

    585.00 image
    585.00 image
    Sale Sold out
    Shipping calculated at checkout.

    FEATURES

    ·  Extends HDMI, USB, and IR up to 120 Meters

    ·  Supports 4K@30Hz Ultra-Clear Resolution

    ·  One-to-Many Transmission (Up to 253 Receivers)

    ·  Remote KVM Control via Keyboard and Mouse

    ·  Aluminum Alloy Housing for Heat Dissipation

    ·  Plug & Play with Automatic Signal Detection

    ·  Compatible with Windows, macOS & ChromeOS



    View Catalog
    View full details
    Description Specification Additional information

    Description

    The Mowsil HDMI Extender 120M (MOE120) allows seamless transmission of HDMI, USB, and IR signals up to 120 meters over a single CAT6/6a Ethernet cable. Designed with professional-grade aluminum alloy housing, it supports resolutions up to 4K@30Hz for crystal-clear visuals with minimal latency.

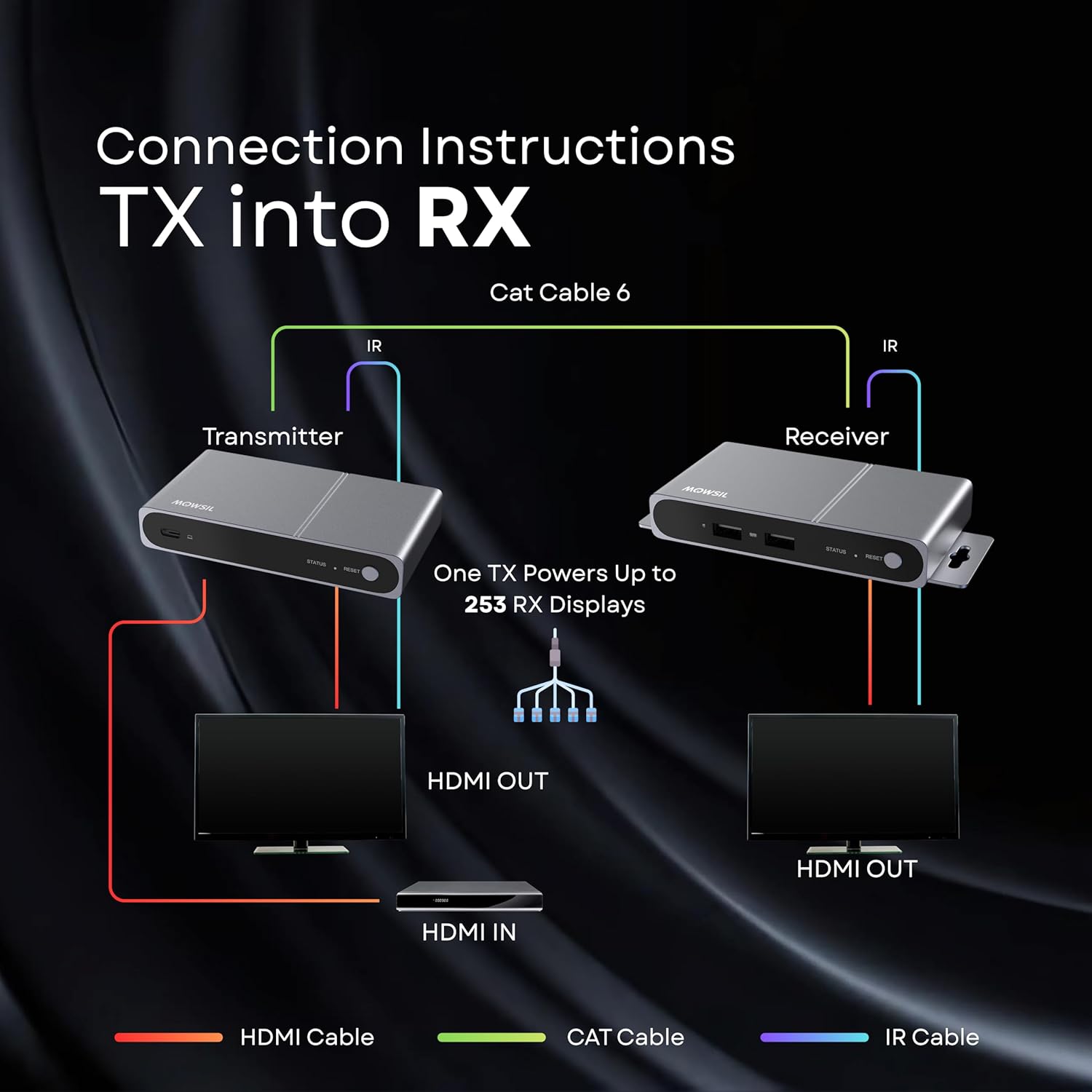

    This extender is ideal for conference rooms, classrooms, digital signage, and remote workstation setups. The receiver (RX) supports reverse USB control, enabling users to operate a remote PC directly with a keyboard and mouse. It also supports one-to-many connections—allowing up to 253 receivers (RX) to connect to one transmitter (TX) via a network switch, ensuring scalability for advanced AV applications.

    Specification

    • Model : MOE120
    • Transmission Distance : Up to 120 meters (CAT6 / CAT6a Cable)
    • Supported Resolution : 4K @ 30 Hz
    • HDMI Version : HDMI 1.4

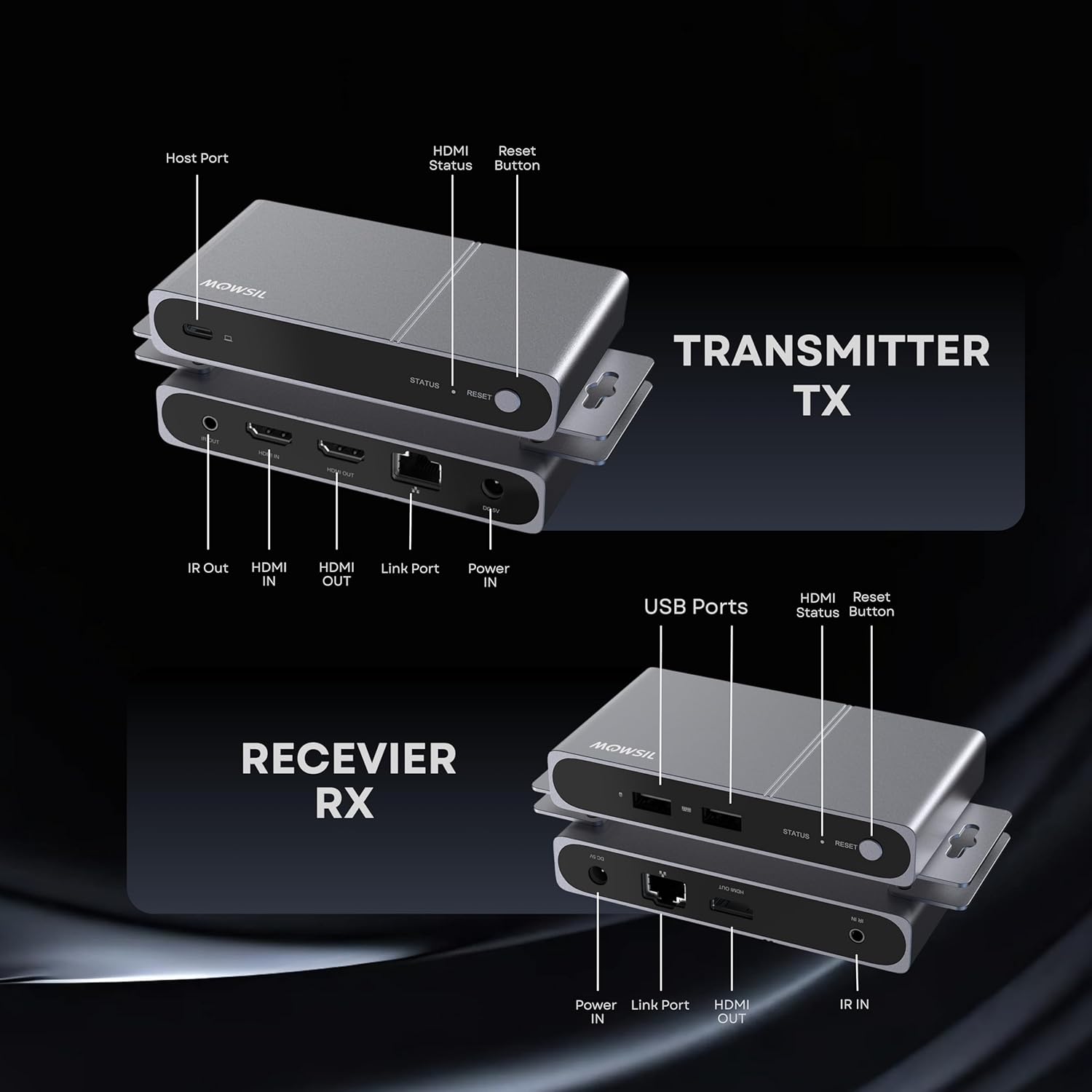

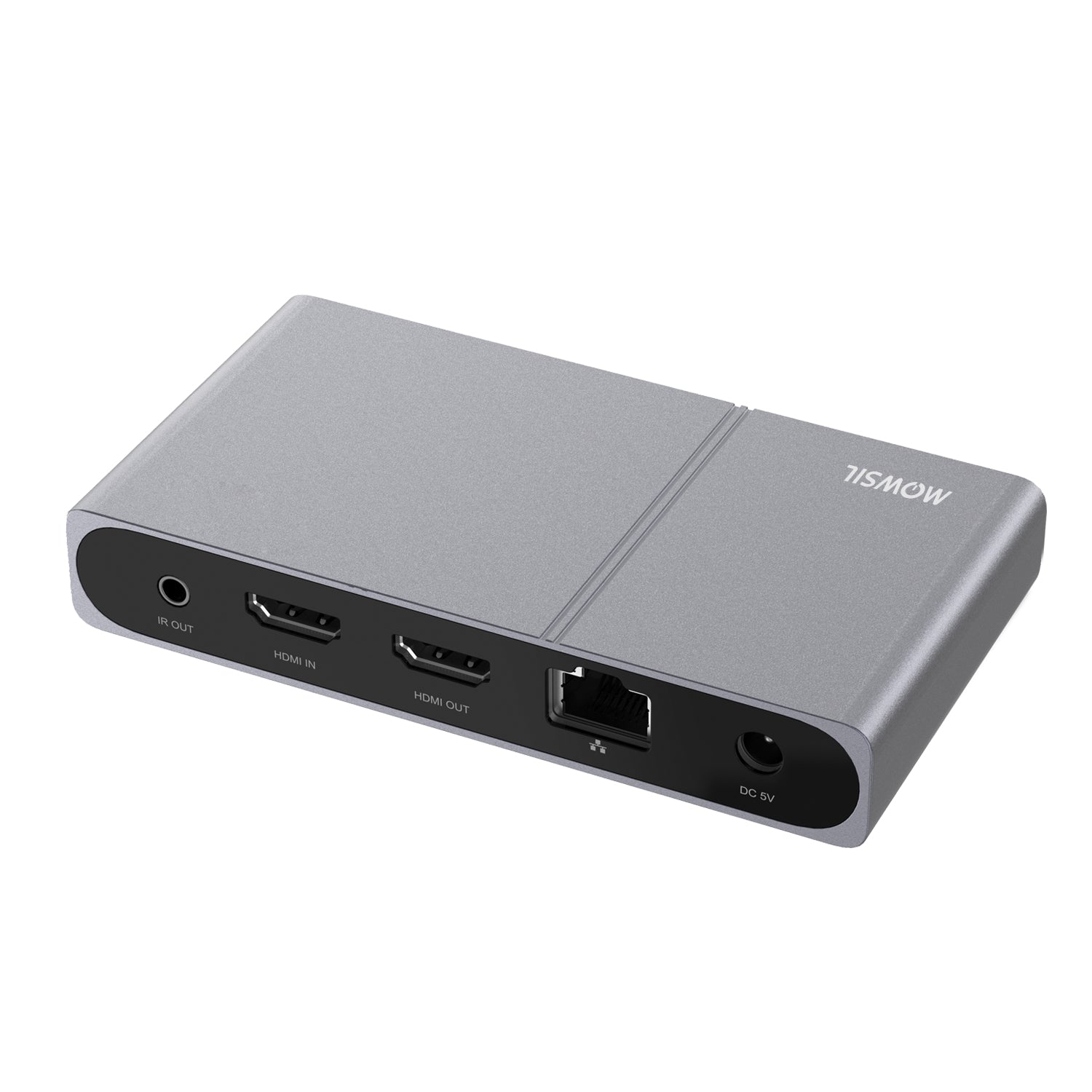

    • Audio / Video Interface (TX) : 1 × HDMI IN, 1 × HDMI OUT (Loop Out)
    • Audio / Video Interface (RX) : 1 × HDMI OUT
    • USB Interface (TX) : 1 × USB-C Host Port
    • USB Interface (RX) : 2 × USB-A 1.1 Ports (Keyboard & Mouse)
    • IR Interface : 1 × IR OUT (TX), 1 × IR IN (RX) (20 ~ 60 KHz)
    • Link Port : 1 × RJ45 (CAT6 or higher required)
    • Power Supply : DC 5 V / 2 A (Each Unit)
    • Product Dimensions : L119 × W64 × H20.5 mm
    • Operating Temperature : 0 °C – 40 °C
    • Storage Temperature : –20 °C – 45 °C
    • Humidity (Working/Storage) : 20–85 % / 10–90 % (No Condensation)
    • Enclosure Material : Aluminum Alloy (Deep Gray)
    • Supported OS : Windows, macOS, ChromeOS
    • Reset Button : Long Press 3 Seconds to Restart System

    Additional information

    • SKU : MOE120
    • Package Contents : Transmitter, Receiver, 2 × 5 V/2 A DC Adapters, USB-A to USB-C Cable, IR Receiver Cable, IR Transmitter Cable, 2 × Replaceable Plugs (US/UK/EU/AU), Mounting Ears & Screws, User Manual
    • Mounting Option : Rack / Wall Mount Ears Included
    • Product Use : Office, Education, Digital Signage, Remote Control Applications
    • Box Dimension : As per SKU Packaging
    • Warranty : 2 Years
    • Country of Origin : China
    • Brand Registration : United Kingdom
